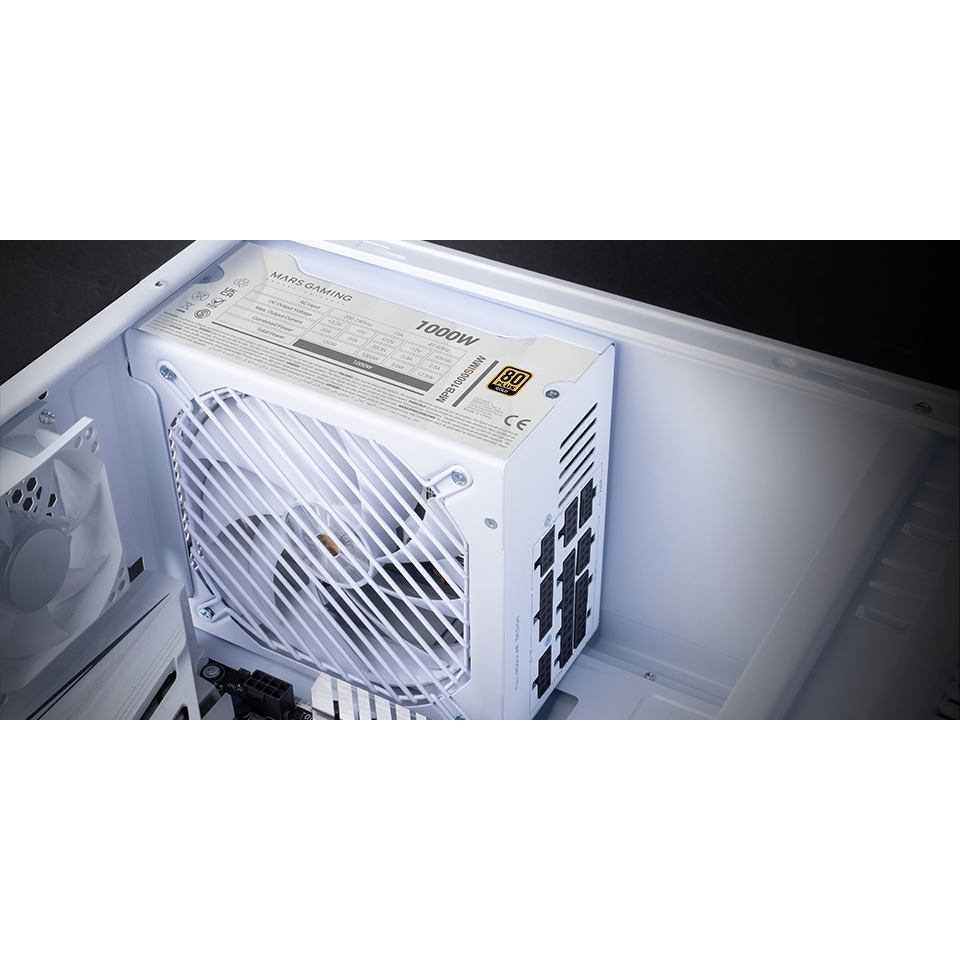

Modular Power Supply

The 1000W MPB1000SIM Full Modular Power Supply offers maximum efficiency, extreme stability and ultrasilence operation in high performance systems. With 80PLUS GOLD certification, it incorporates DC-DC and SMD technology for an optimized energy conversion and a precise and secure power supply. Its fan if extreme silence of 140mm with FDB and advanced AI2-RPM control dynamically adjusts the speed through artificial intelligence and Machine Learning, guaranteeing an efficient cooling and an ultrasilence operation. In addition, it is compatible with the ATX 3.1 and PCIE 5.1 standards, ensuring maximum integration with last generation hardware (12V 2x6 cable not included).

Read more Read less
  • 1000W power
  • Fan if extreme silence 140mm with copper core and aluminum
  • Certificate 80 Plus Gold
  • AI2-RPM, DC-DC and SMD technologies
€0.00
Colour
  • White
  • Black

Ships in 2–4 business days
Free shipping on orders over 39.90€ (mainland Spain)
3 year warranty

Lighting
Not
Weight
1750g
Dimensions
150x160x85mm
Certifications
Atx12v
EC
ROHS
Connectors

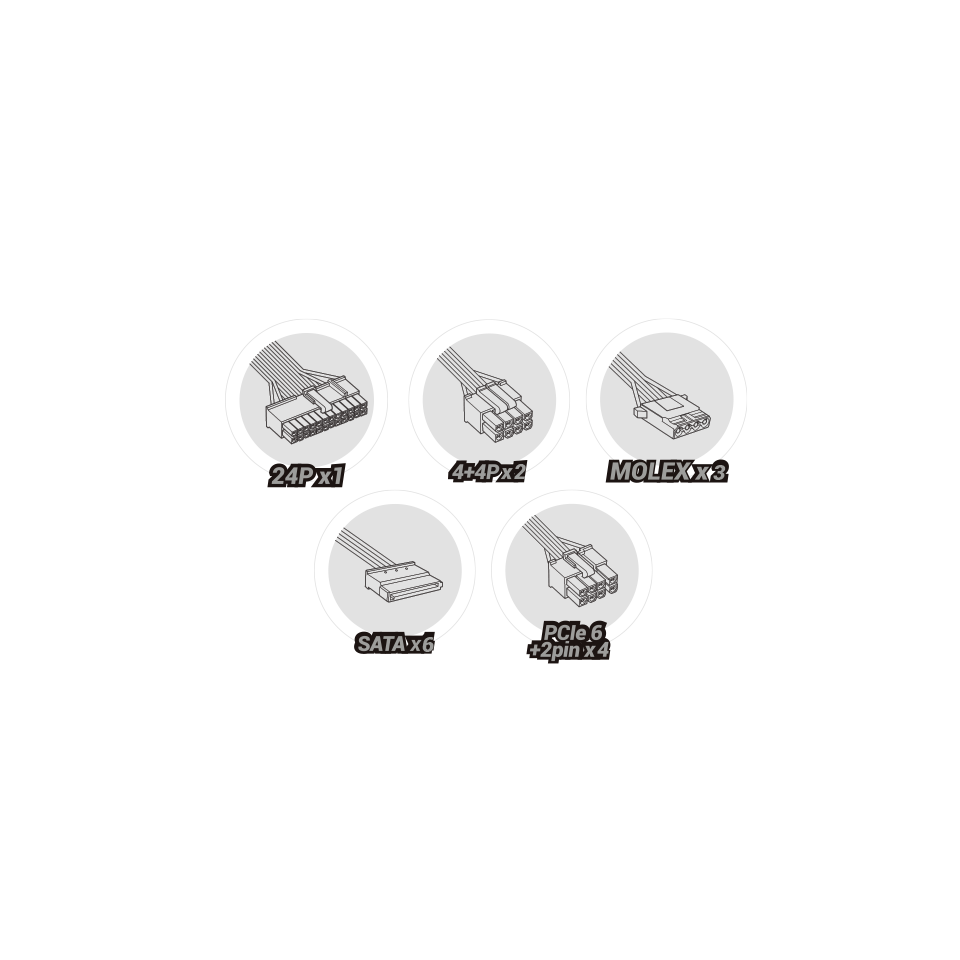

· 1x ATX MB 24 PIN · 2x EPS +12V 4+4 PIN · 4x PCIe 6+2 PIN · 6x SATA · 3x Molex 4 PIN · 1x 12V-2x6 PIN Port (CABLE NOT INCLUDED)
Extras
ATX 3.1, PCIe 5.1 (12V-2x6 cable not included), DC-DC, SMD
Antivibration system and fan speed control
Extra long flat cables
Power
1000w
Fan
140mm
Sound level
14db
80plus
Gold
Form factor
ATX
Efficiency
90%v
PFC
Active
Output Voltage/Current
+ 3.3V - 20A / + 5V - 20A / + 12V - 83.3A / -12V - 0.3A / + 5VSB - 2.5A
Maximum current
15a
Input voltage
200-240V 47 / 63Hz
Protections
NLO
OCP
OPP
OTP
OVP
PFP
PLO
SCP
TCP
UVP
Finished wiring
Plans
Type of wiring
Completely modular
Warranty
7 years warranty
MPB1000SIM
Advanced extreme silence

The MPB1000SIM is designed to operate without distractions, even in high loads. Its fan if extreme silence of 140mm with copper core and aluminum with FDB bearings minimizes friction, ensuring greater durability and operating stability. Its advanced dissipation structure and flow acceleration channels ensure optimum cooling, maximizing energy efficiency and system stability.

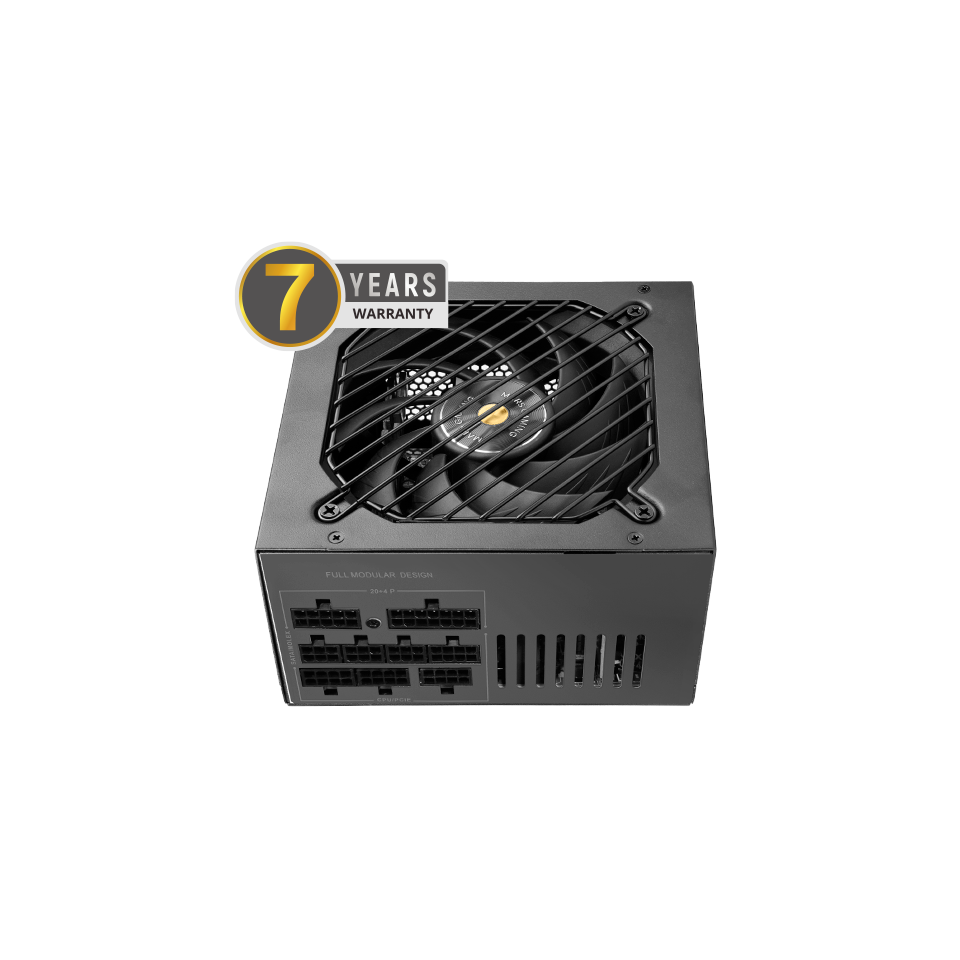

Comprehensive protection 7 years warranty

Designed to offer absolute reliability, it has 7 years warranty, ensuring stable and safe performance even in the most demanding configurations. The MPB1000SIM incorporates an advanced multilevel protection system, with OCP / OVP / OPP / OTP / OLP / NLO / PFP / UVP / SCP / TCP, protecting your hardware versus overloads, short circuits and electrical fluctuations.

Smart Control AI2-RPM

Driven by advanced AI2-RPM technology, the fan if extreme silence dynamically adjusts its speed in real time, adapting to the system load to ensure a perfect balance between cooling and absolute silence. Thanks to its intelligent control based on artificial intelligence and Machine Learning, it optimizes the air flow and minimizes noise, providing ultra-silent operation even in the most demanding conditions.

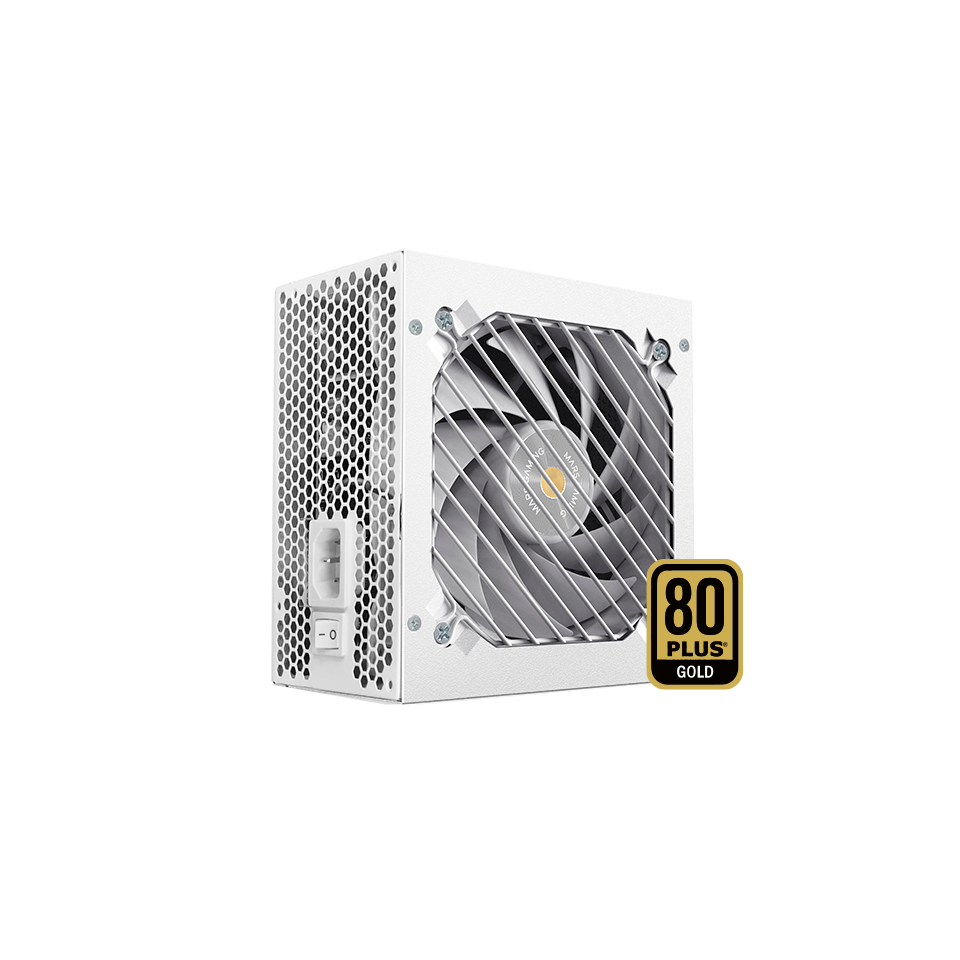

80plus GOLD certification

With 80PLUS GOLD certification, the MPB1000SIM offers more than 90% of energy efficiency, which reduces electricity consumption and heat generation, improving system stability. Its sustainable and optimized design ensures stable and silent performance, perfect for high performance environments.

Compatibility with ATX 3.1 and PCIE 5.1

Designed for the most advanced configurations, this power supply offers total compatibility with ATX 3.1 and PCIe 5.1 standards, guaranteeing optimal integration with the latest generation systems. Its optimized design provides an energy delivery efficient and stable, perfect for feeding the GPUs and more recent components. (* 12V 2x6 cable not included)

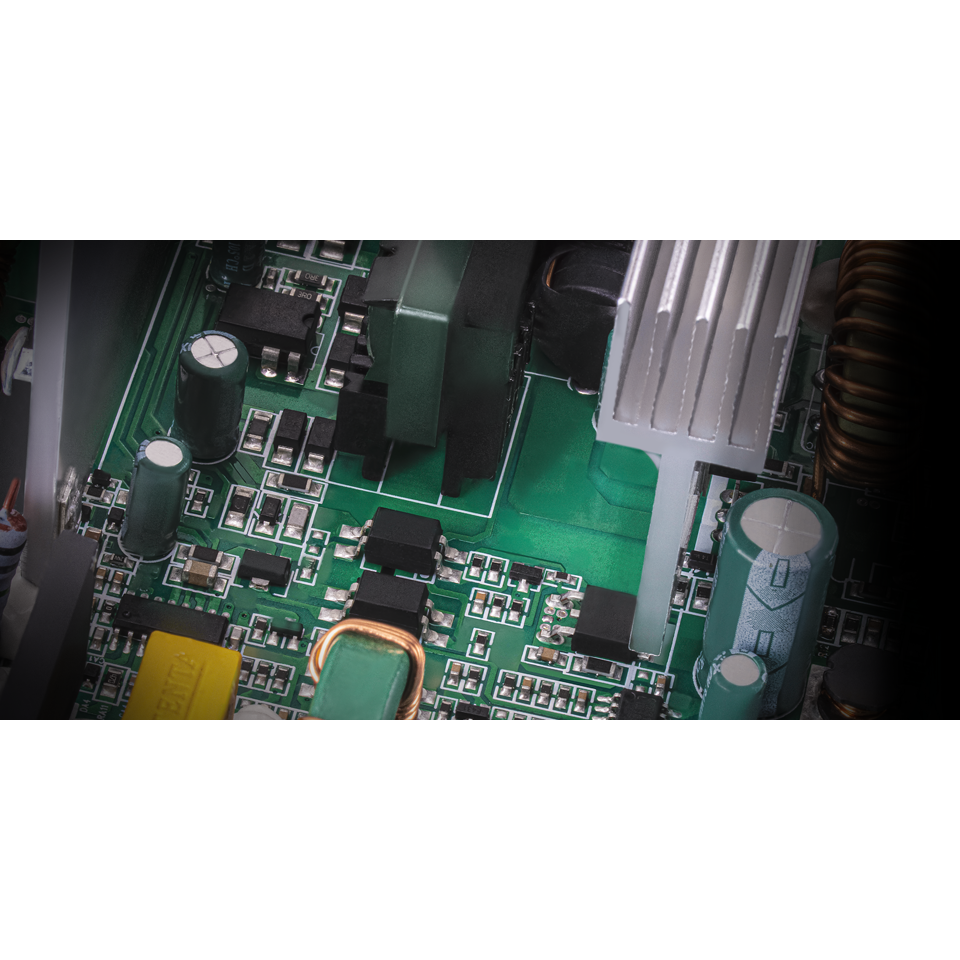

DC-DC and SMD technology: Power and stability

DC-DC conversion technology offers precise voltage regulation, ideal for state-of-the-art graphic cards and demanding configurations. Combined with SMD technology, it improves the efficiency and lifespan of the source, reducing energy consumption by up to 20%, ensuring accurate regulation and optimum protection for the most sensitive components under any load condition.

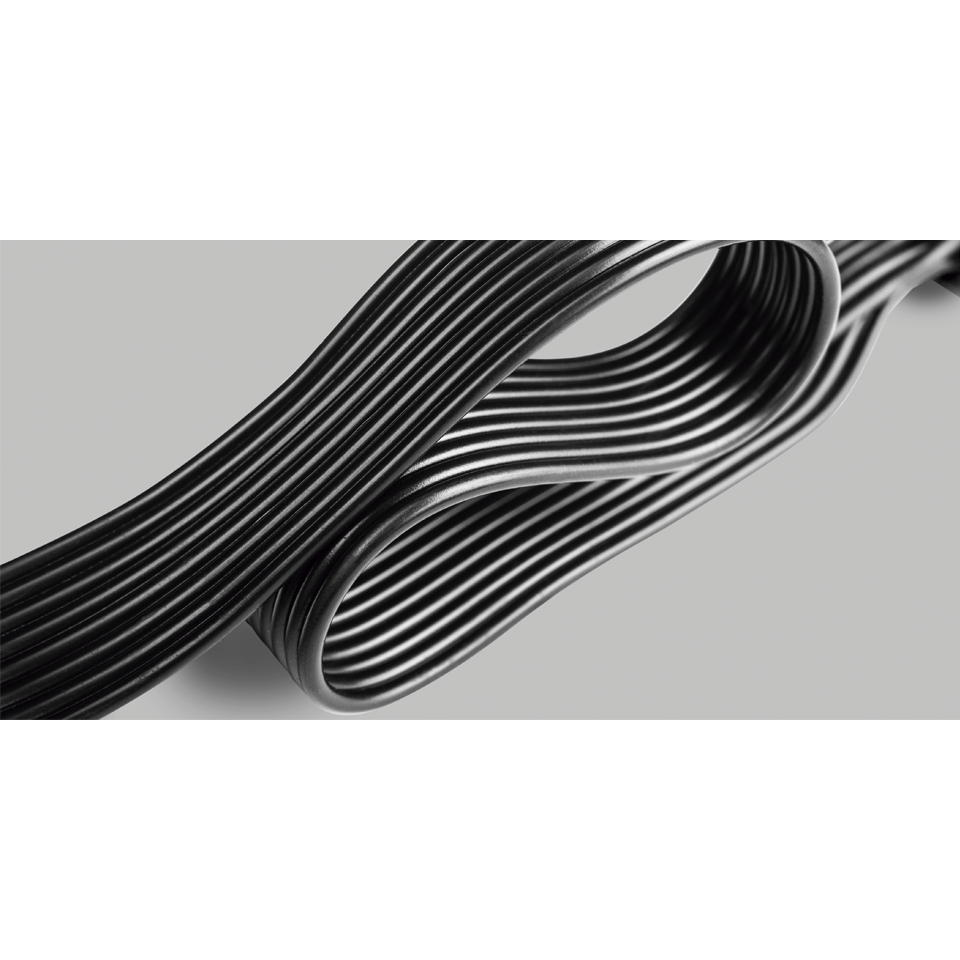

Premium modular wiring

Thanks to its full modular design, the MPB1000SIM source allows you to connect only the necessary cables, facilitating a clean and efficient wiring management. Extra-colored air cables optimize the organization within the chassis, improving the flow of air and aesthetics of the setup.
